Smart, Non-Invasive, Clamp-On.
Clamp-on NB-IoT ultrasonic flowmeter for accurate, cost-effective monitoring — without cutting pipes or interrupting supply.

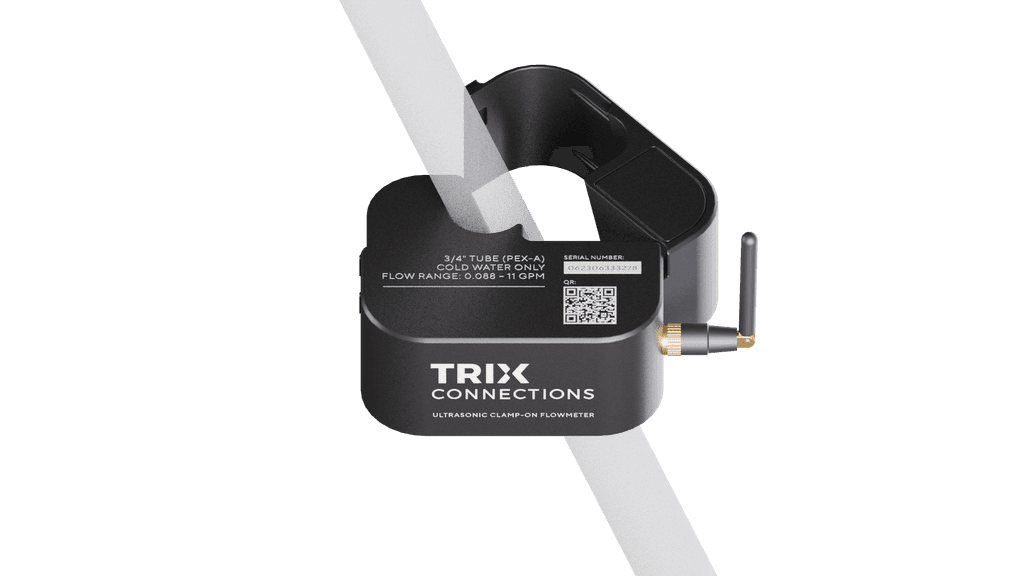

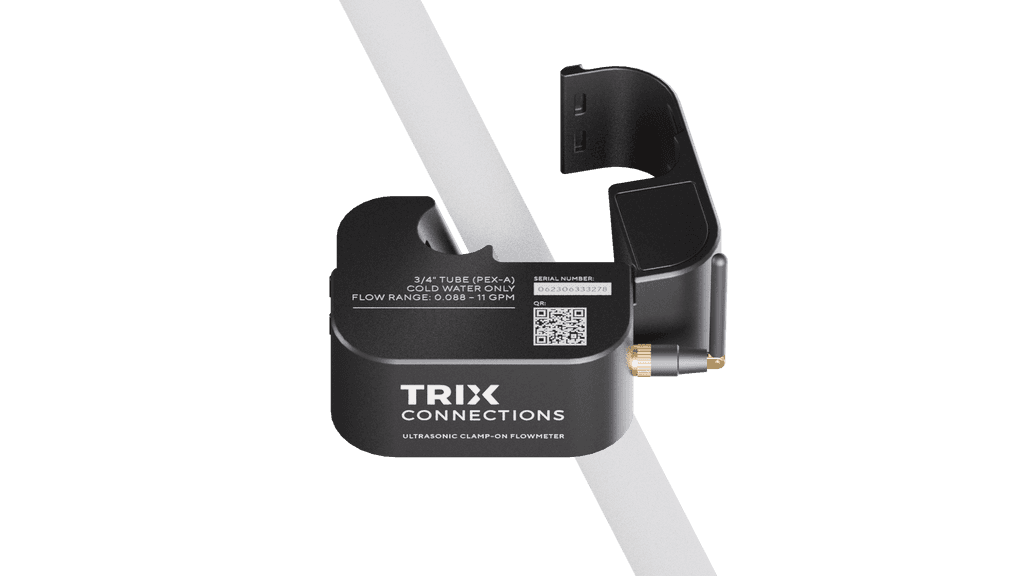

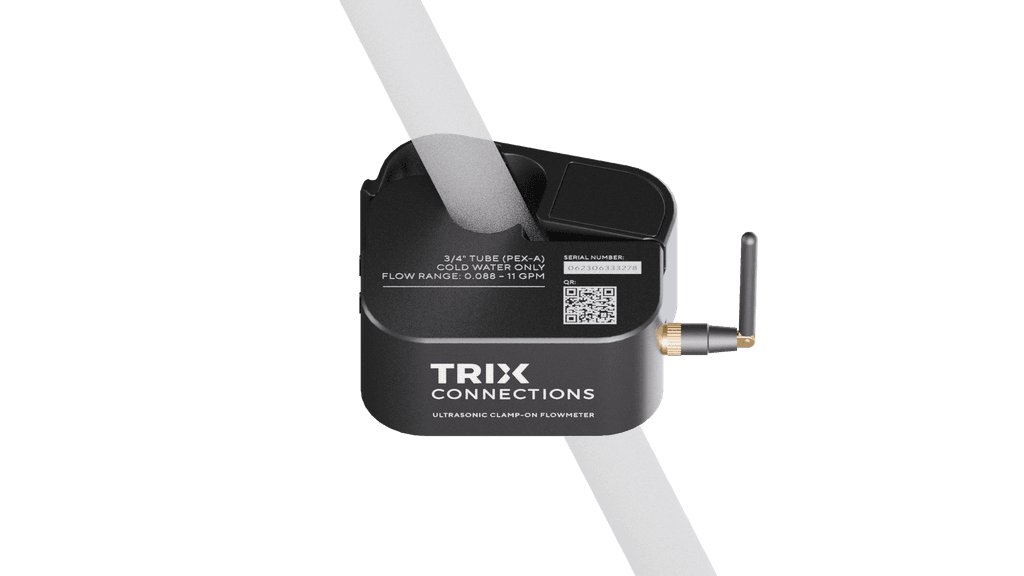

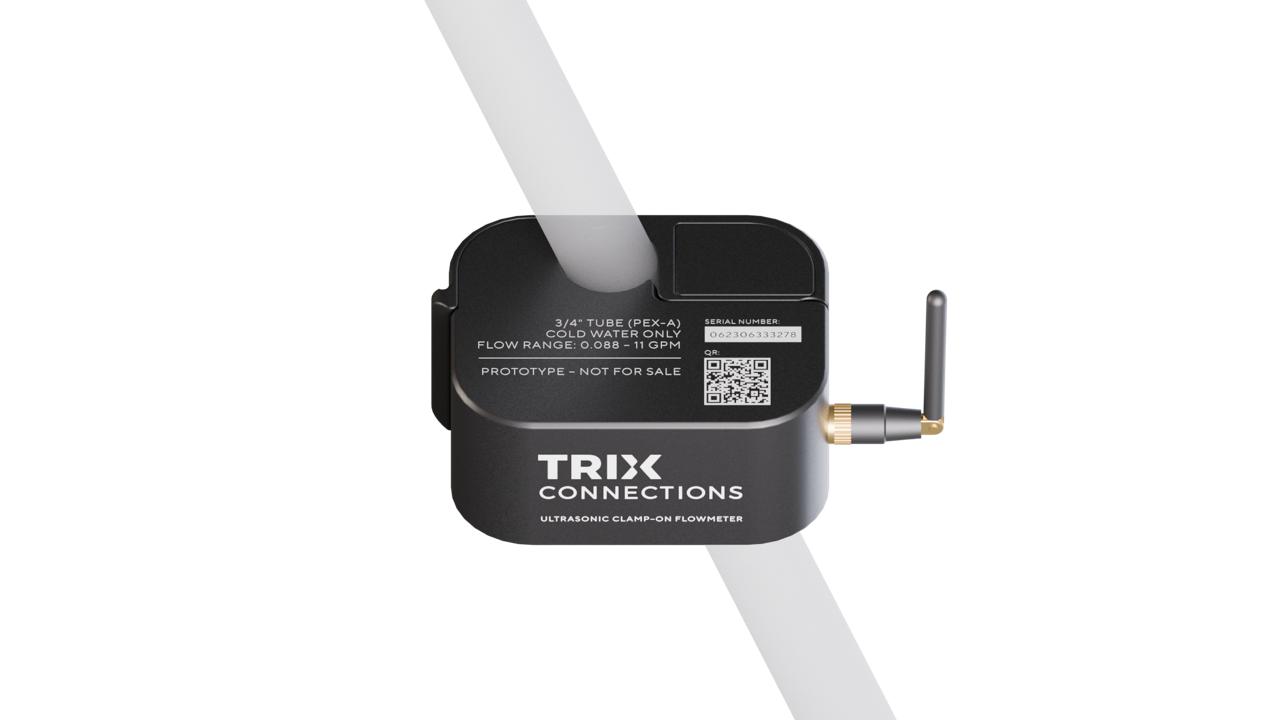

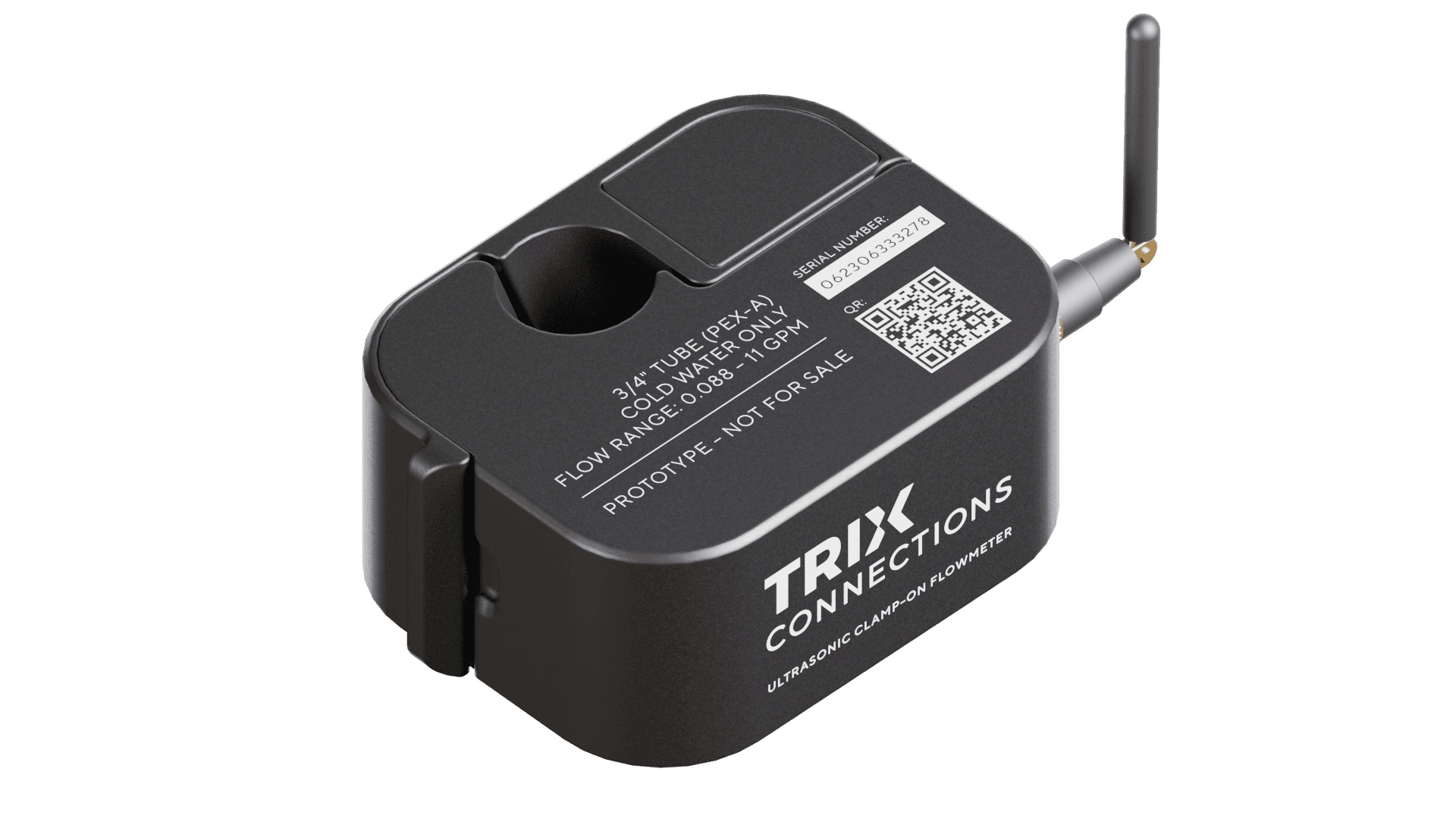

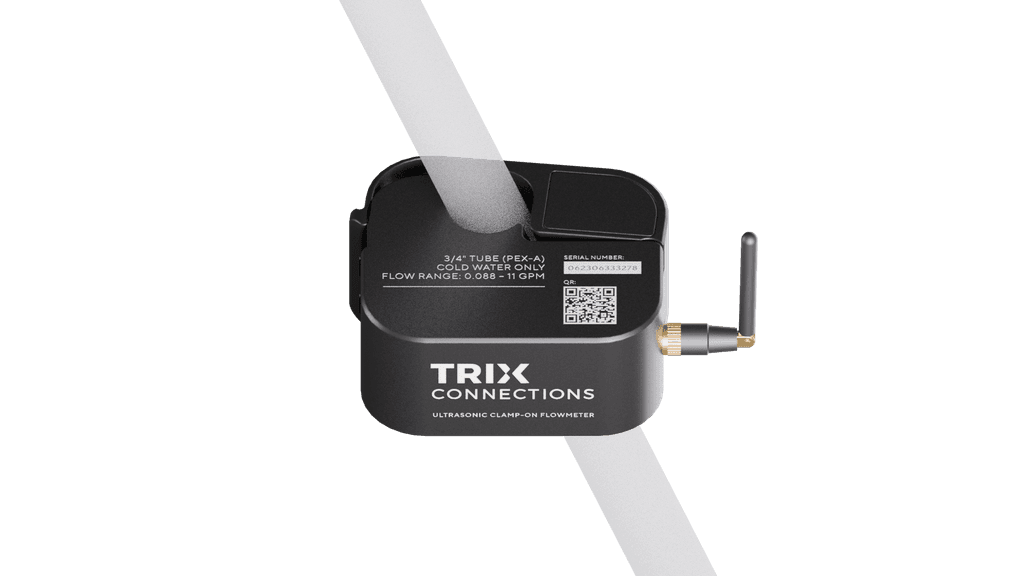

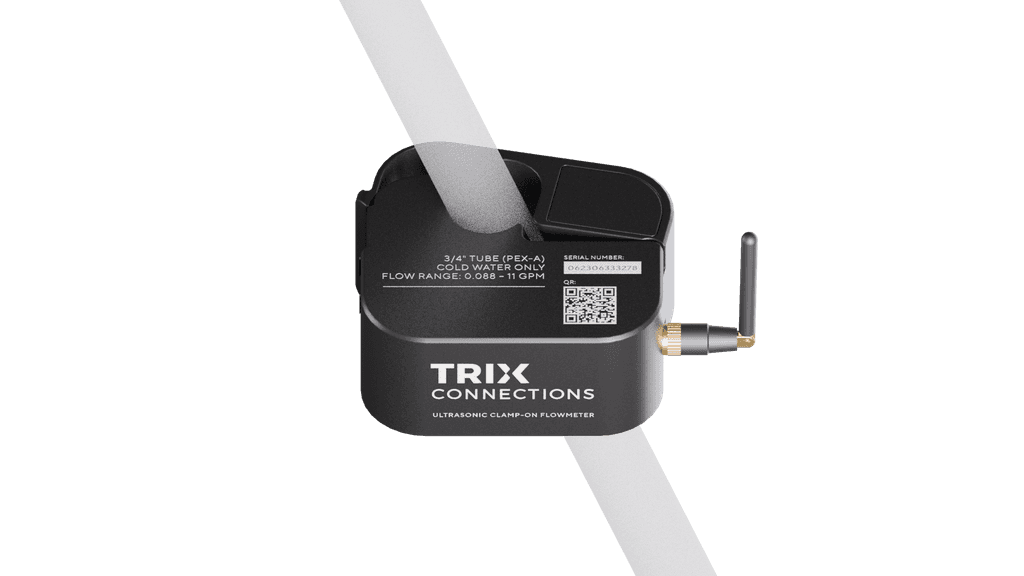

TRIX Smart clamp-on flowmeter
delivers accurate monitoring
with effortless installation

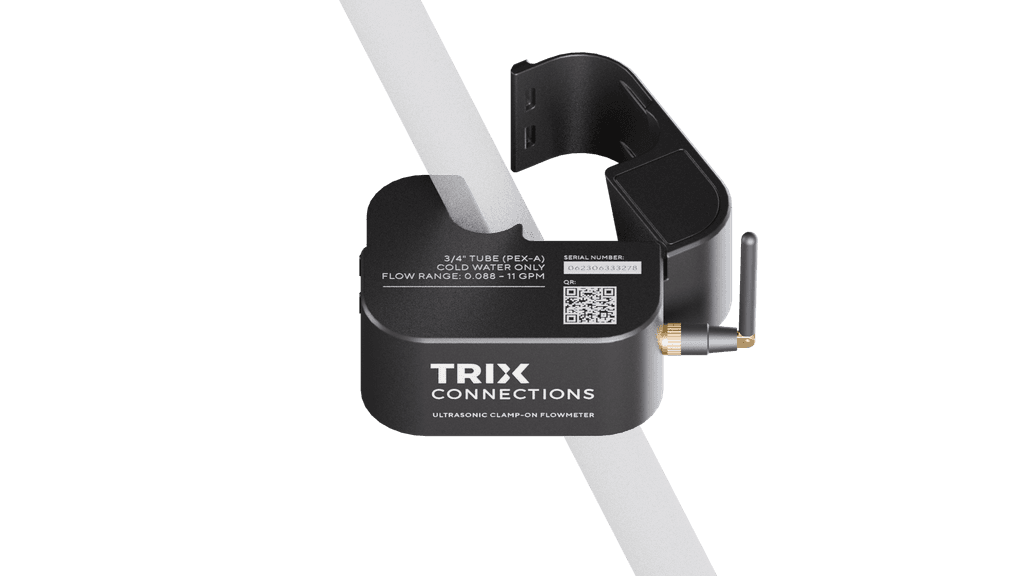

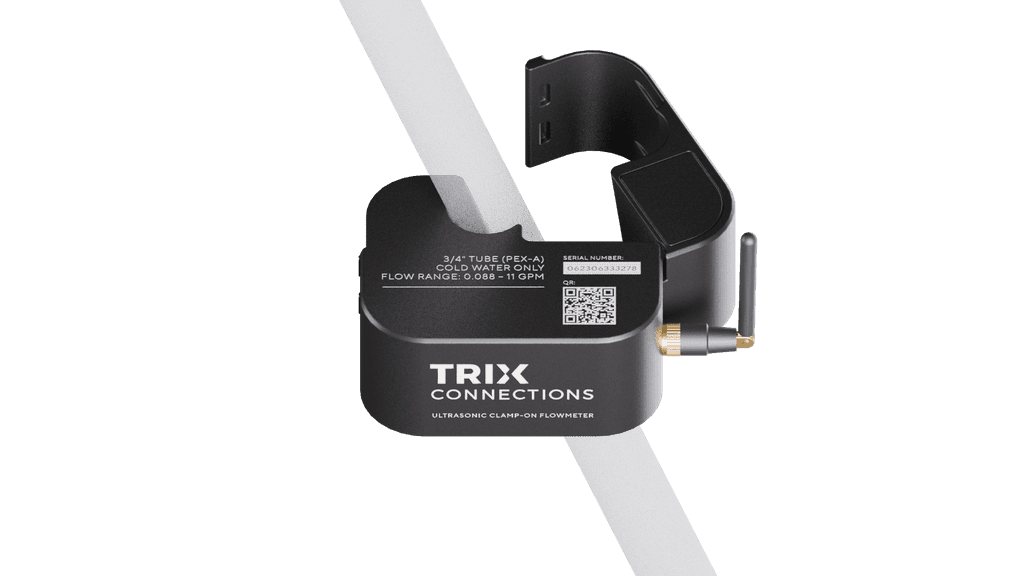

Non-invasive installation
No downtime – install without cutting or draining pipes
Hygienic & safe – no contact with the fluid, zero contamination risk
Quick setup – clip-on in minutes, no special tools needed
Operator safety – no exposure to pressurized or hazardous liquids
Retrofit ready – works on existing infrastructure
Flexible use – supports multiple pipe materials and diameters
Cost-saving – no plumbing work, minimal maintenance
High accuracy
±1% typical accuracy under standard lab conditions (±3% maximum)
Standard deviation: 0.5% (max. 1%)
Data resolution: 0.0001 L (0.00002 gal) and 1-second time resolution
Automatic zero-flow calibration within 20 minutes of startup
Field conditions may introduce up to +5% additional error (pipe/material variations, turbulence)
NB-IoT connectivity
Reliable coverage – Operates on licensed cellular networks, offering stronger and more predictable connectivity.
Deep penetration – Works well in underground or hard-to-reach locations where other connections may struggle.
Ultra-low power – Designed for long battery life 5 years, making it ideal for devices like flowmeters.
Carrier-grade security – Encrypted by default, leveraging existing mobile infrastructure.
Global scalability – Standardized by 3GPP, supported by most major operators.
Technical Specifications
Measuring range: 20–2500 l/h
Accuracy: ±1–3% (lab verified)
Battery life: 5–6.5 years (depending on interval)
Connectivity: NB-IoT with retry + data storage buffer
Payload: Flow time, gallons, events, battery voltage, diagnostics
Target certifications: FCC, UL 61010-1, AWWA

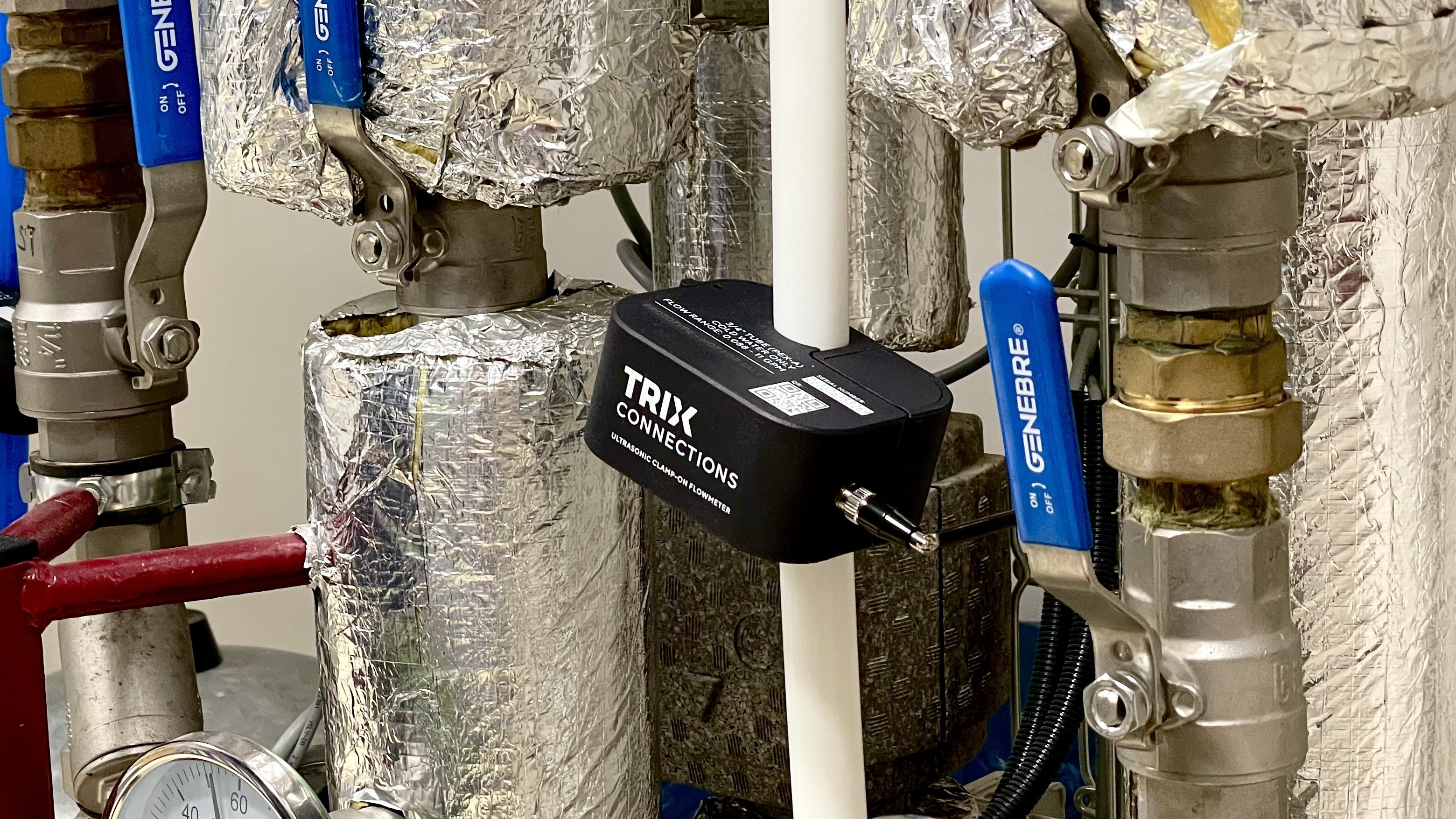

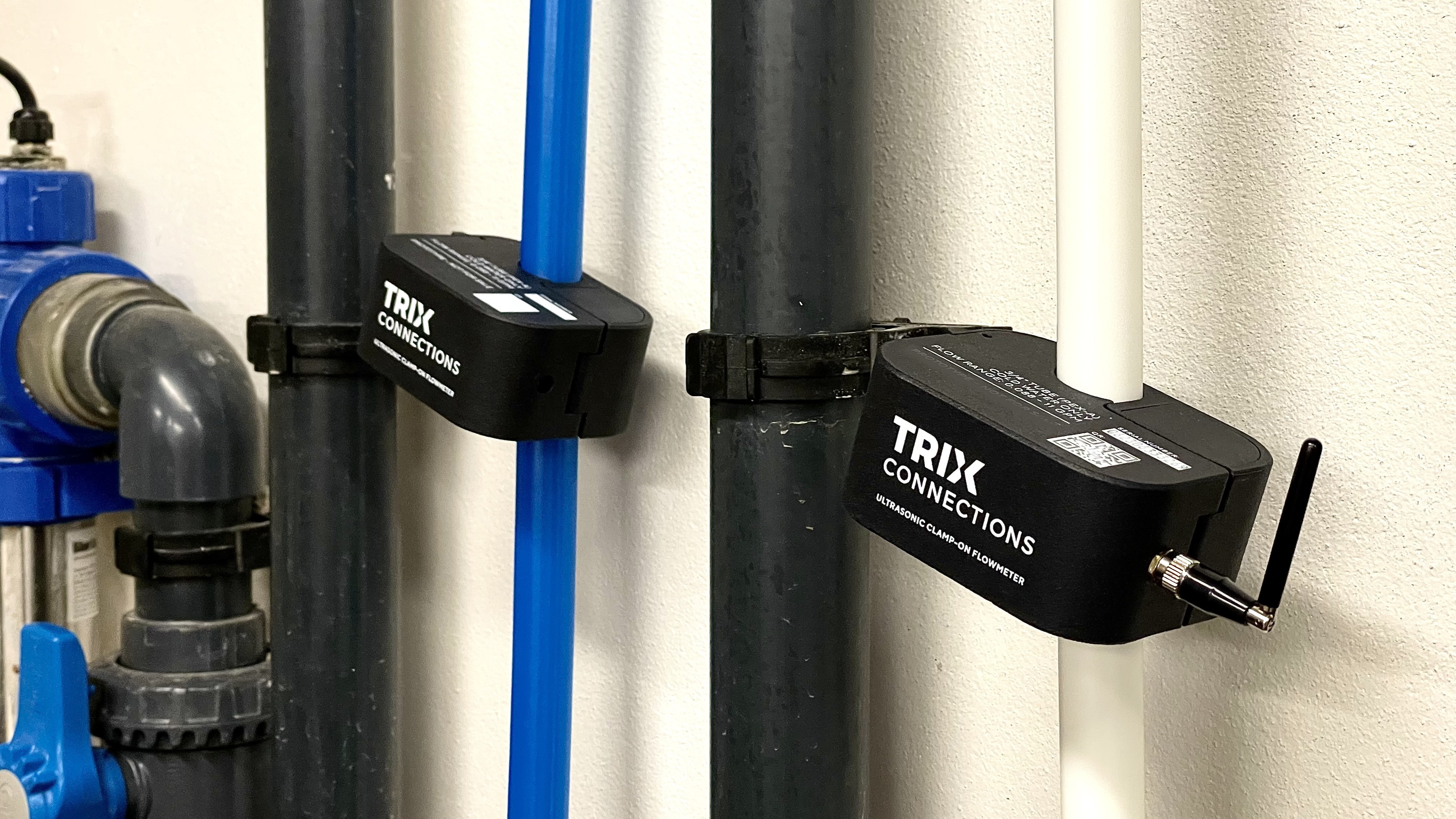

In reality
Measure Flow. Don’t Touch the Pipe.
